NPL12-200G2 Lithium Battery 200AH

$2,283.00

Product Information

Weight 20.5 kg
Dimensions 52.2 × 24 × 21.9 cm
Voltage

12.8 V

Product Description

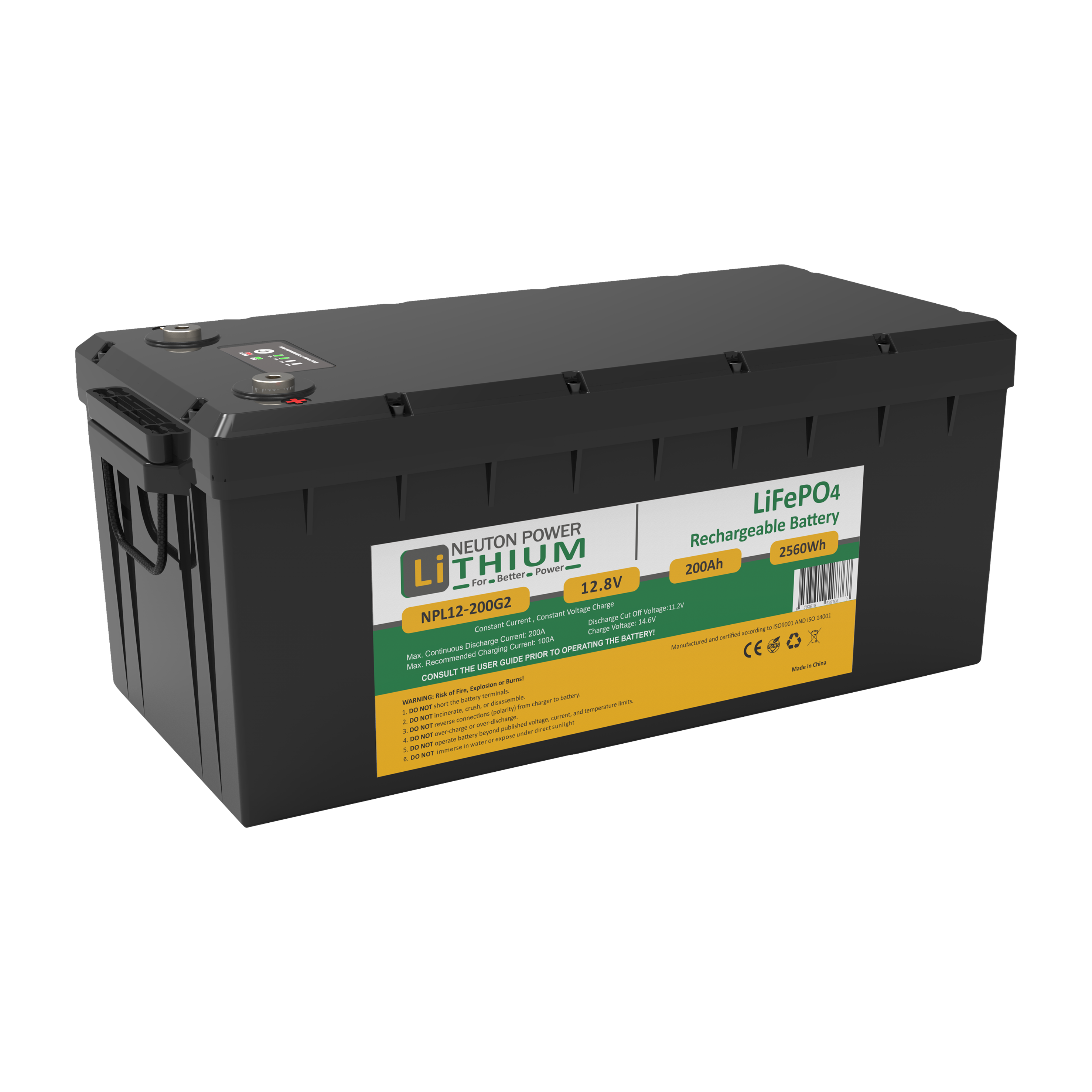

NEUTON POWER Lithium Battery 12.8V 200AH

Terminals: M8

Model & overall Specs Neuton Power NPL12-200G2
Dimension (LWH,mm) 522 * 240 * 219
Cell 3.2V 200AH
Cell  Series & Parallels 4S1P
Rated Voltage 12.8V
Rated Capacity 200 AH
Rated Energy 2560 Wh
Max Charge Current A 100A
Recommended Charge Current A 100A
Max Discharge Current A 200A
Life Cycle @25 celcius,0.5C/0.25C,80%DOD >3500
Warranty Period 5 Yr or 3000 cycles
End of discharge voltage 11.2V
Operating temperature-Charge 0~50 °C
Operating temperature-Discharge -20~55 °C
IP Rating IP65
Series Support <=4
Parallel Support <=4
